ZJZ Series Multi Spindle Drilling Machine

ZJZ Series Multi Spindle Drilling Machine

Product Introduction

Shuangli ZJZ series multi spindle deep hole drilling machine is designed and developed for mass processing for small bar shaft products. like fuel injectors, medical implants etc, Products loading and unloading can use robot . drilling tools use solid carbide gun drills or brazed gundrills, hole diameter range normally start from 1.5mm-16mm, length no longer than 600mm.

FEATURE

1,Robot loading and un-loading products, high efficiency

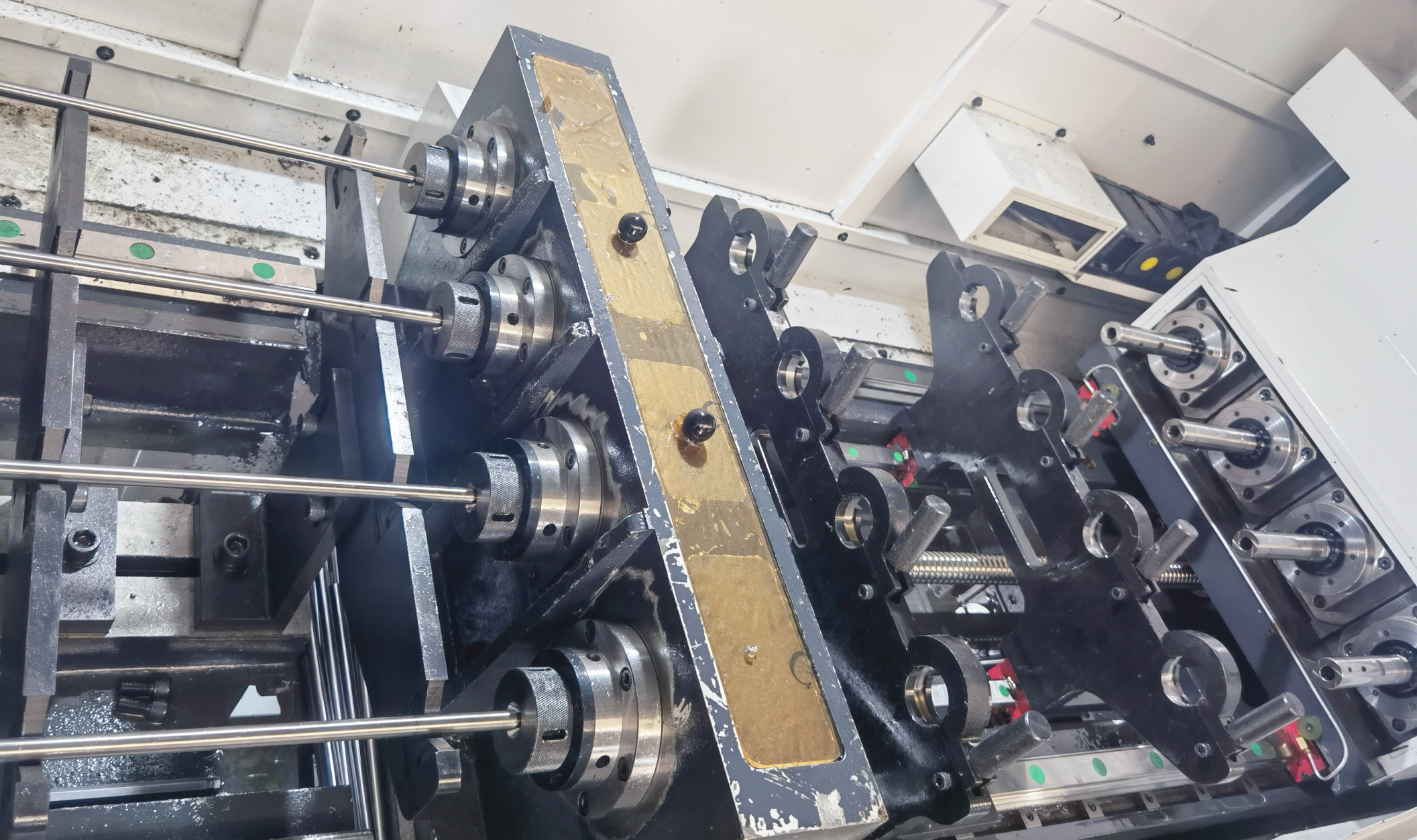

2, 6 pcs gundrills separately run deep hole drilling processing,will not mutual interference

3, comprehensively applying on Automotive, Medical etc

DATA SHEET

ZJZ series multi spindle drilling machine

Processing capacity

Machine aperture range

∮1.5~16mm

Maximum drilling depth

500mm

The maximum length of workpiece

600mm

Spindle

Qty. of spindle

Multi optional

Spindle centerline spacing

200mm

Maximum speed of spindle

6000rpm

Spindle feed speed

100mm/min

Spindle fast moving speed

1000mm/min

Power

Spindle motor

7.5kw

Total power

18kw

Cooling system

Pressure range of cooling liquid

2~10MPa

Flux range of cooling liquid

0~200L/min

Machine tool

Floor area of machine tool (L*W)

4300×2700×1900mm

Weight

8ton
